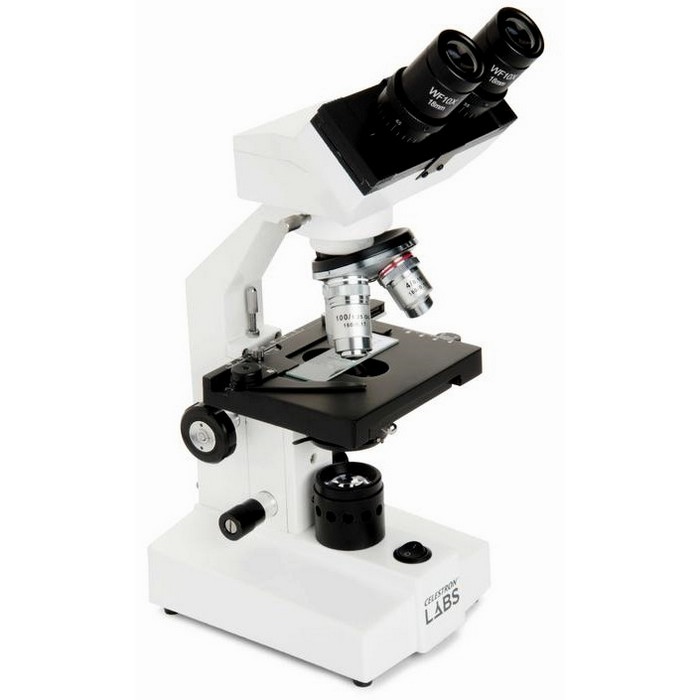

Celestron Microscope LABS CB2000CF Product Info

The Celestron Labs CB2000CF Binocular Compound Microscope offers all the advanced features you’re looking for at an economical price. With 10x and 20x eyepieces and 4 included objective lenses (4x, 10x, 40x and 100x), you’ll achieve magnification ranging from 40x to 2000x.

Strong and stable thanks to its all-metal construction, this microscope features a fully adjustable, mechanical stage so you can easily center your specimen slides. Improve the quality of your magnified images with the included 3 colored filters. The 10 included prepared slides guarantee exciting discoveries right out of the box. The N 1.25 Abbe condenser with iris diaphragm concentrates and focuses the lower illumination for enhanced viewing making the CB2000CF an excellent tool for labs, schools, scientific research and more.

Specifications:

• Type of Microscope    Compound Binocular
• Head    Binocular with 360° rotatable 45° incline and interpipilary distance adjustability
• Eyepiece(s) Magnification    (1) 10x and (1) 20x (10x with pointer)
• Eyepiece(s) Diameter    23.2 mm (.91")
• Nosepiece    quadruple, rotational
• Objective(s) Type    Refractive
• Objective(s) Standard    DIN
• Objective(s) Magnification    (4) 4x, 10x, 40x, 100x immersion, all achromatic
• Objective(s) Thread    4/5" x 1/36"
• Focus Type(s)    Rack & pinion, coarse and fine focus (individual dials)
• Focus Travel (per rotation)    0.1 mm (.004")
• Magnification Range    40x to 2000x (40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x)
• Illumination Type    Halogen
• Illumination Position(s)    Lower
• Illumination Adjustability Mechanism    Dial
• Power Source    AC Adapter- 100-240V
• Battery Option    6V/0.5W
• Stage    Mechanical stage, 110 mm x 120 mm (4.3" x 4.7")
• Condenser Type    Abbe with Iris adjustment
• Condenser N.A.    1.25
• Stage Diaphragm    N/A
• Included Accessories    10 prepared slides, 3 color filters (blue, white opaque, green), immersion oil

Package Contents:

• Celestron Microscope LABS CB2000CF
