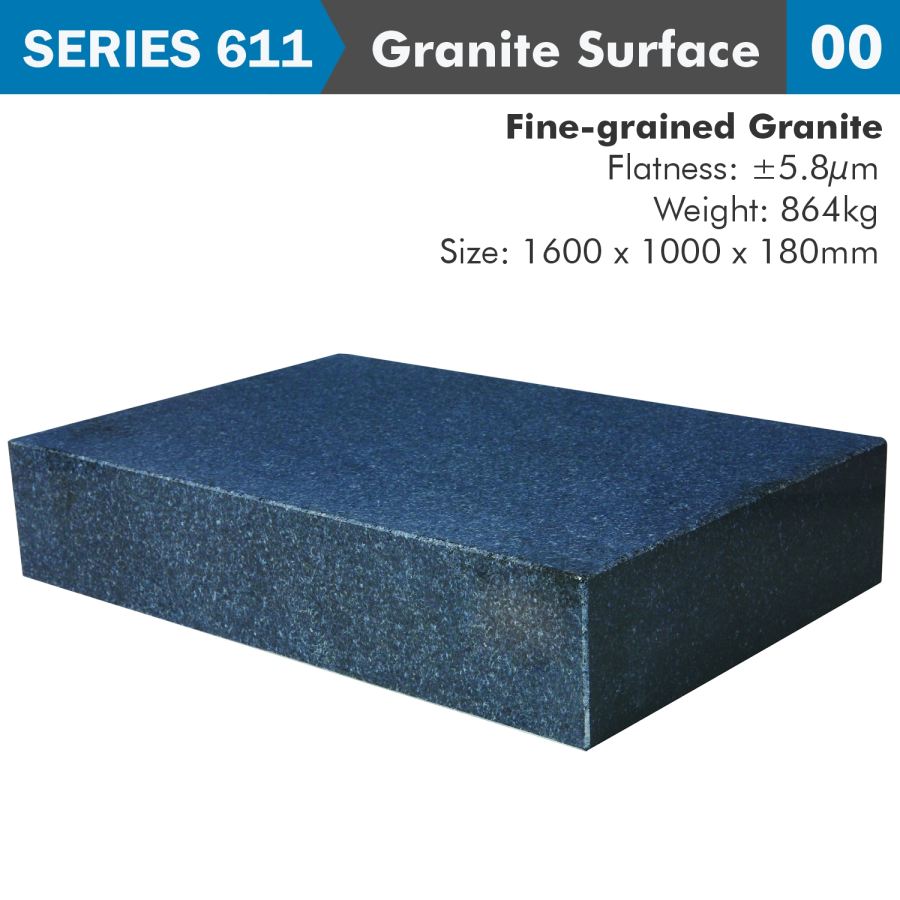

Granite Surface Plate Grade 00 1600x1000x180mm 864kg 0.0058mm Flat

A granite surface plate is a flat, stable reference surface made from high-quality, precision-ground granite. It is primarily used in industrial and laboratory environments for precise measurement and inspection tasks. The stability, durability, and wear resistance of granite make it an ideal material for surface plates, particularly for maintaining accuracy over time under heavy use.

Applications of a Granite Surface Plate:

1. Precision Inspection:

   • Surface plates are used as a reference plane for inspecting parts for flatness, squareness, parallelism, and other geometrical dimensions. Instruments such as dial indicators, height gauges, and CMM (Coordinate Measuring Machines) are often used in conjunction with a surface plate to measure parts accurately.

2. Layout Work:

   • In manufacturing or machining, granite surface plates are used as the base for marking out precise locations on a workpiece, especially for holes, cutouts, or assembly points.

3. Calibration:

   • Tools like micrometers, calipers, and dial indicators are often calibrated against a granite surface plate, ensuring that they are accurate when used for measurement.

4. Precision Assembly:

   • Surface plates serve as a platform for assembling precision components, allowing for consistent alignment and the elimination of errors in fit or dimension.

5. CMM Base:

   • In coordinate measuring machines (CMMs), granite is often used as the base plate because of its dimensional stability, ensuring the CMM performs consistently and accurately.

Advantages of Using Granite Surface Plates:

1. Superior Flatness:

   • Granite can be ground and lapped to an incredibly high degree of flatness, offering a reference surface that remains consistent over time.

2. Non-reactive:

   • Granite does not rust, corrode, or react chemically with most materials, making it ideal for use in various environments, including labs with sensitive equipment.

3. Thermal Stability:

   • Granite has a low coefficient of thermal expansion, meaning it doesn’t expand or contract significantly with temperature changes, maintaining accuracy across different environments.

4. Long Lifespan:

   • Due to its hardness and durability, granite surface plates last for many years with minimal wear. They are much more resistant to scratches and damage compared to steel plates.

5. Vibration Dampening:

   • Granite naturally absorbs vibrations, which helps ensure more accurate measurements by minimizing disturbances when working with sensitive instruments.
