GAV RPF188R-1 Pressure Reducing Valve & Filter 1/2' with Universal Couplers

  • Model: VER/GAV RPF188R-1
  • Shipping Weight: 0.985 Kg
  • 28 Units in Stock
  • Manufactured by: GAV
  • UPC: 8011275001885
Ask a Question

R947.50

Add to Cart:

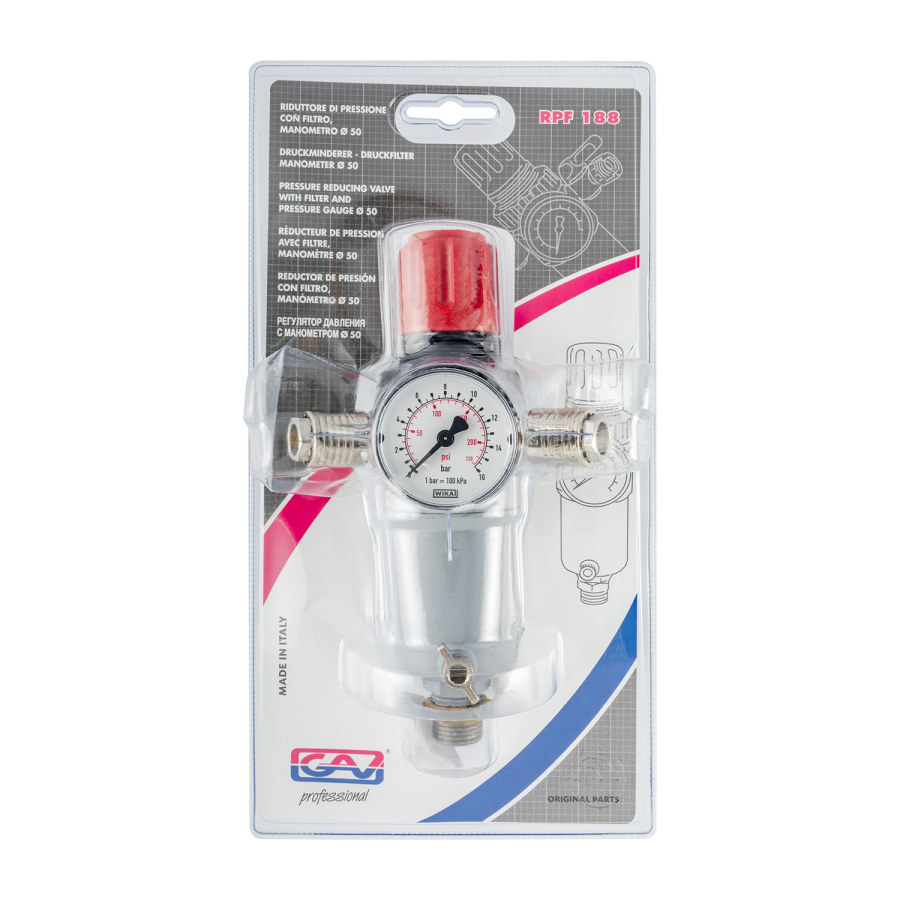

GAV RPF188R-1 Pressure Reducing Valve & Filter 1/2' with Universal Couplers

GAV RPF188R-1 is a pressure reducing valve with an integrated filter, ø50 pressure gauge and two universal rapid couplers. It provides regulated and filtered compressed air for pneumatic systems, with a 1/2' BSP male connection.

The GAV RPF188R-1 combines pressure reduction and air filtration in a compact pneumatic air-treatment unit. It features a ø50 pressure gauge, two universal rapid couplers and a 10 µm filter for removing contaminants from the compressed-air supply.

The RPF188R-1 provides an adjustable pressure range of 0–12 BAR, with a maximum inlet pressure of 16 BAR and a flow rate of 5,000 Nl/min at 6 BAR. The filter cup has a 50 ml capacity, making the unit suitable for higher-flow compressed-air installations.

Product Highlights

  • Pressure reducing valve with integrated filter
  • ø50 pressure gauge
  • Two universal rapid couplers
  • Adjustable pressure range of 0–12 BAR
  • Maximum inlet pressure of 16 BAR
  • 10 µm filtration
  • 5,000 Nl/min flow at 6 BAR
  • 50 ml filter cup capacity
  • 1/2' BSP male connection
  • Made in Italy
