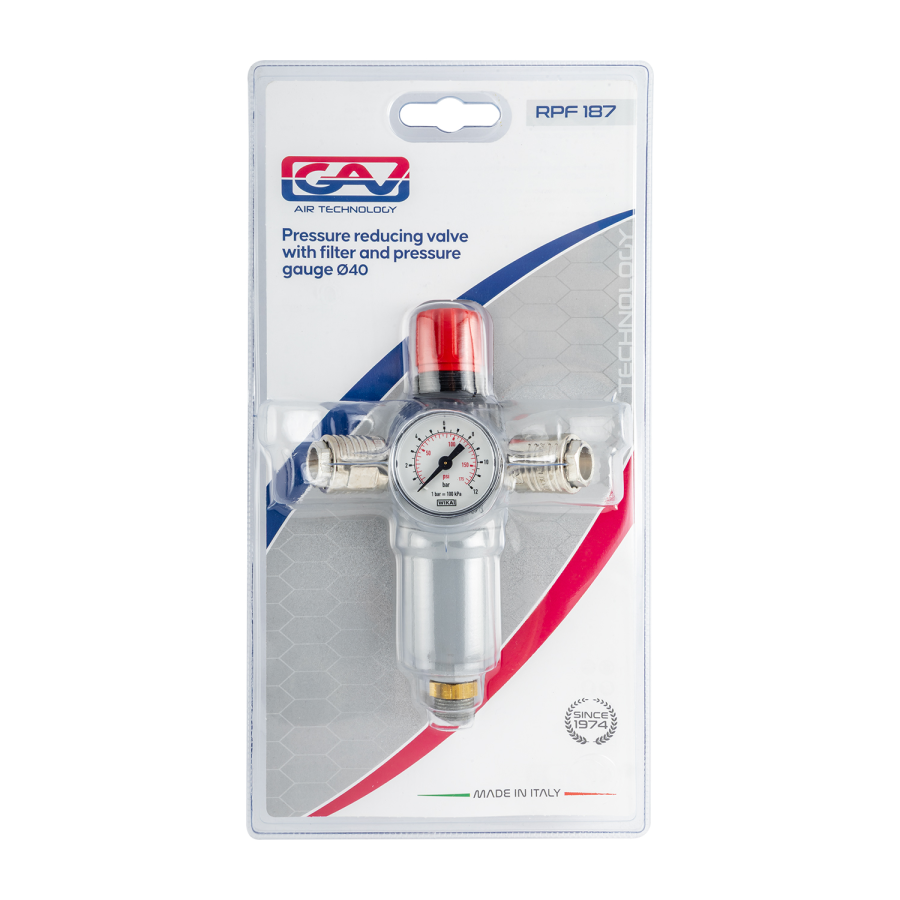

GAV RPF187R Pressure Reducing Valve & Filter 3/8' with Universal Couplers

GAV RPF187R Pressure Reducing Valve & Filter 3/8' with Universal Couplers

The GAV RPF187R combines pressure reduction and air filtration in a compact pneumatic air-treatment unit fitted with two universal rapid couplers. The ø40 pressure gauge provides pressure indication, while the integrated 10 µm filter helps remove contaminants from the compressed-air supply.

The RPF187R provides an adjustable pressure range of 0–10 BAR, with a maximum inlet pressure of 12 BAR and a flow rate of 1800 Nl/min at 6 BAR. The unit has a 30 ml cup capacity and is configured for connection to compatible pneumatic equipment through its 3/8' BSP male connection.

Product Highlights

• Pressure reducing valve with integrated filter
• ø40 pressure gauge
• Two universal rapid couplers
• Adjustable pressure range of 0–10 BAR
• Maximum inlet pressure of 12 BAR
• 10 µm filtration
• 1800 Nl/min flow at 6 BAR
• 30 ml cup capacity
• 3/8' BSP male connection
• Made in Italy
