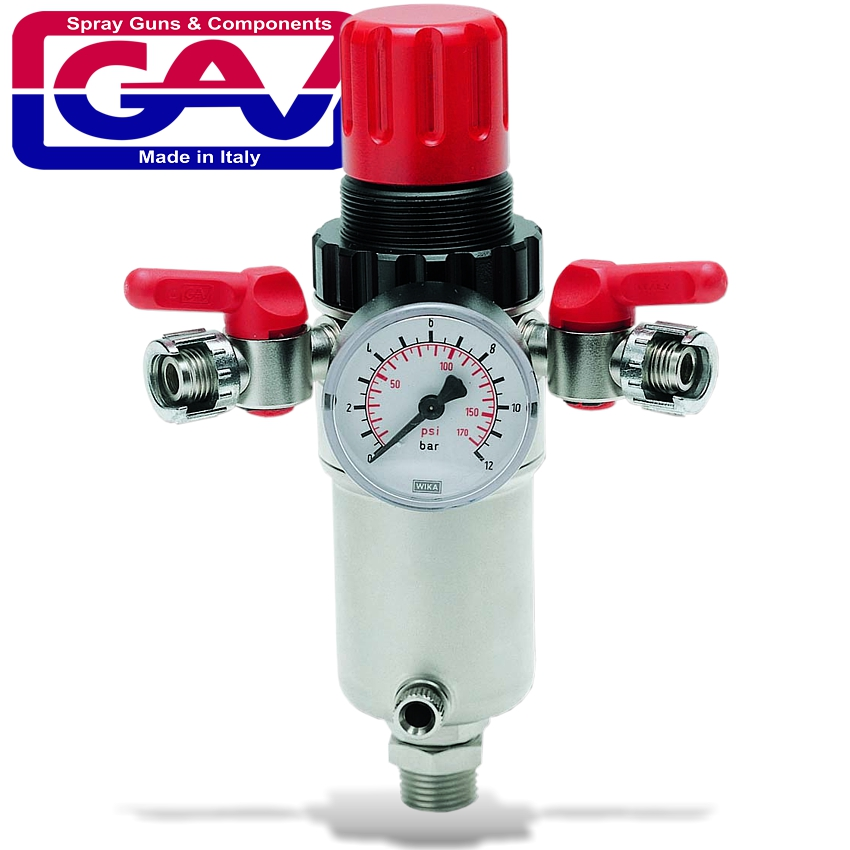

GAV RPF188 Pressure Reducing Valve & Filter 1/2'

  • Model: VER/GAV RPF188
  • Shipping Weight: 0.96 Kg
  • 69 Units in Stock
  • Manufactured by: GAV
  • UPC: 8011275001878
Ask a Question

R937.50

Add to Cart:

GAV RPF188 Pressure Reducing Valve & Filter 1/2'

GAV RPF188 is a pressure reducing valve with an integrated filter, ø50 pressure gauge and two in-line cocks. It provides regulated and filtered compressed air for pneumatic systems, with a 1/2' BSP male bottom connection.

The GAV RPF188 combines pressure reduction and air filtration in a compact pneumatic air-treatment unit. It features a ø50 pressure gauge, two in-line cocks and a 10 µm filter for removing contaminants from the compressed-air supply.

The RPF188 provides an adjustable pressure range of 0–12 BAR, with a maximum inlet pressure of 16 BAR and a flow rate of 5,000 Nl/min at 6 BAR. The filter cup has a 50 ml capacity, making the unit suitable for higher-flow compressed-air installations.

Product Highlights

  • Pressure reducing valve with integrated filter
  • ø50 pressure gauge
  • Two in-line cocks
  • Adjustable pressure range of 0–12 BAR
  • Maximum inlet pressure of 16 BAR
  • 10 µm filtration
  • 5,000 Nl/min flow at 6 BAR
  • 50 ml filter cup capacity
  • 1/2' BSP male bottom connection
  • Made in Italy
