GAV RPF187 Pressure Reducing Valve & Filter 3/8'

  • Model: VER/GAV RPF187
  • Shipping Weight: 0.58 Kg
  • 61 Units in Stock
  • Manufactured by: GAV
  • UPC: 8011275001854
Ask a Question

R675.00

Add to Cart:

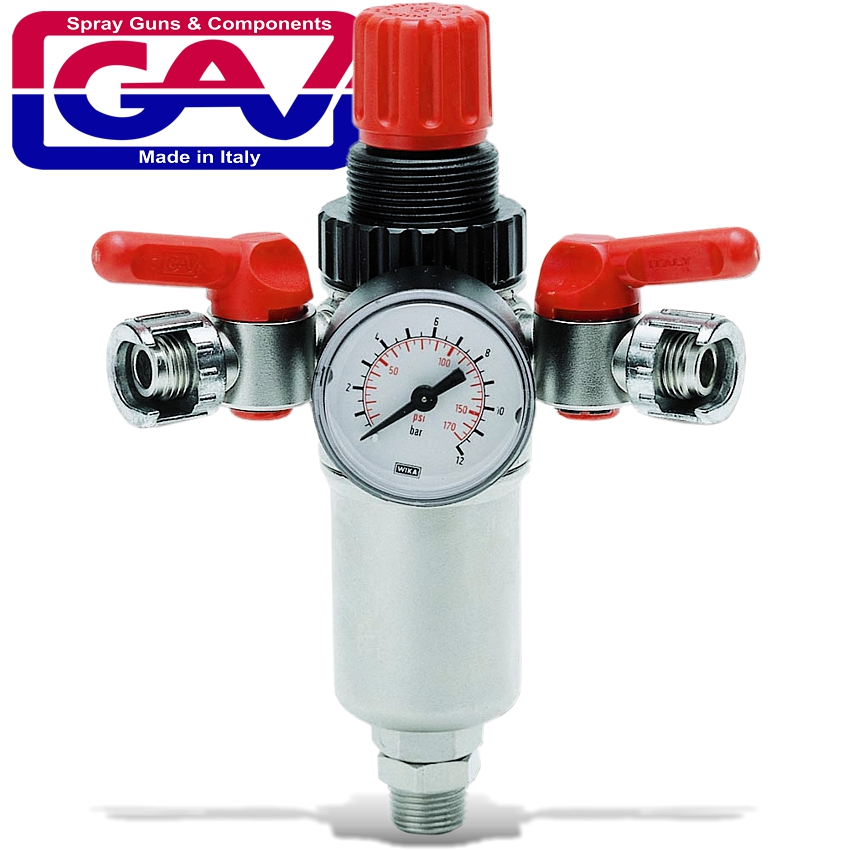

GAV RPF187 Pressure Reducing Valve & Filter 3/8'

GAV RPF187 is a pressure reducing valve with an integrated filter, ø40 pressure gauge and two in-line cocks. It provides regulated and filtered compressed air for pneumatic systems, with a 3/8' BSP male bottom connection.

The GAV RPF187 combines pressure reduction and air filtration in a compact pneumatic air-treatment unit. It features a ø40 pressure gauge, two in-line cocks and a 10 µm filter for removing contaminants from the compressed-air supply.

The RPF187 provides an adjustable pressure range of 0–10 BAR, with a maximum inlet pressure of 12 BAR and a flow rate of 1800 Nl/min at 6 BAR. The filter cup has a 30 ml capacity and the unit is configured with a 3/8' BSP male connection at the bottom.

Product Highlights

  • Pressure reducing valve with integrated filter
  • ø40 pressure gauge
  • Two in-line cocks
  • Adjustable pressure range of 0–10 BAR
  • Maximum inlet pressure of 12 BAR
  • 10 µm filtration
  • 1800 Nl/min flow at 6 BAR
  • 30 ml filter cup capacity
  • 3/8' BSP male bottom connection
  • Made in Italy
