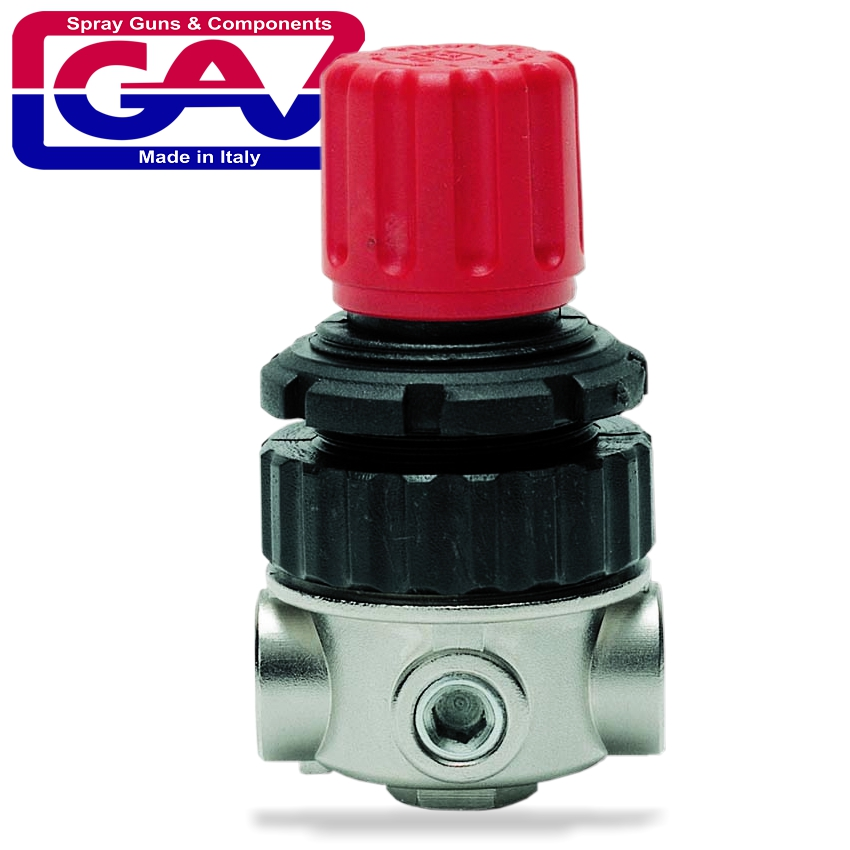

GAV RP192 Pressure Reducing Valve 1/4' x 1/4' Female

  • Model: VER/GAV RP192
  • Shipping Weight: 0.16 Kg
  • 73 Units in Stock
  • Manufactured by: GAV
  • UPC: 8011275002554
Ask a Question

R292.50

Add to Cart:

GAV RP192 Pressure Reducing Valve 1/4' x 1/4' Female

GAV RP192 is a compact pressure reducing valve designed for compressed-air systems. It features 1/4' BSP female connections and provides adjustable pressure reduction for compatible pneumatic equipment.

The GAV RP192 is a pressure reducing valve for regulating compressed-air pressure in pneumatic systems. Its 1/4' BSP female connections provide a compact connection between compatible pneumatic components while allowing the working pressure to be reduced and controlled.

The RP192 has a maximum inlet pressure of 12 BAR, an adjustable pressure range of 0–10 BAR and a flow rate of 1700 Nl/min at 6 BAR. It is suitable for compressed-air installations where compact pressure control is required.

Product Highlights

  • Pressure reducing valve
  • 1/4' BSP female inlet and outlet connections
  • Adjustable pressure range of 0–10 BAR
  • Maximum inlet pressure of 12 BAR
  • Flow rate of 1700 Nl/min at 6 BAR
  • Compact pneumatic pressure control
  • Made in Italy
