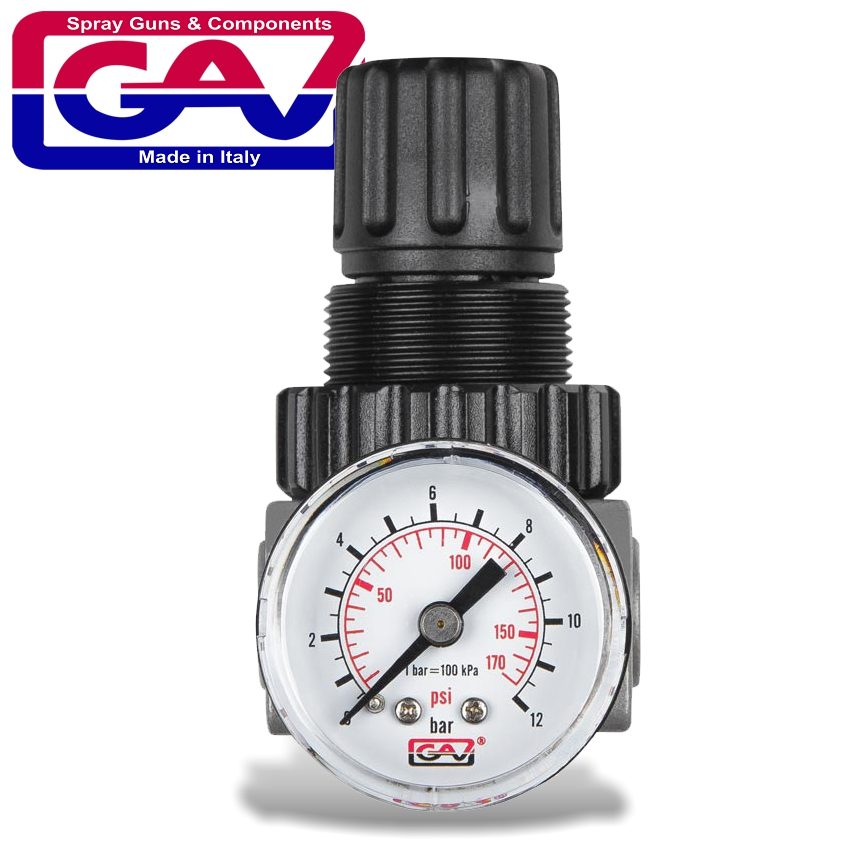

GAV R180 Inline 1/4' Piston Pressure Regulator

GAV R180 Inline 1/4' Piston Pressure Regulator

Compact inline piston pressure regulator with 0–10 bar adjustment range and integrated manometer. The GAV R180 is designed for regulating compressed-air pressure in pneumatic installations and features a 1/4' BSP female connection, locking adjustment hand grip and pressure gauge.

The GAV R180 is an inline piston micro-reducer designed to regulate compressed-air pressure in pneumatic systems. It has a maximum inlet pressure of 12 bar and an adjustable pressure range from 0 to 10 bar.

With a specified flow of 1,700 Nl/min at 6 bar, the R180 provides controlled pressure adjustment for pneumatic equipment and compressed-air installations. The regulator is fitted with an adjustment hand grip with locking device and a manometer for monitoring the regulated pressure.

Product highlights

• Piston micro-reducer – Designed for regulating compressed-air pressure in pneumatic installations.
• 0–10 bar adjustment range – Allows the outlet pressure to be adjusted according to the requirements of the application.
• 12 bar maximum inlet pressure – Suitable for compressed-air systems within the specified maximum inlet pressure.
• 1,700 Nl/min flow – Rated flow of 1,700 Nl/min at 6 bar.
• Integrated manometer – Provides a visual indication of regulated pressure.
• Locking adjustment – Adjustment hand grip incorporates a locking device to help maintain the selected pressure setting.
• 1/4' BSP female connection – Designed for connection to compatible pneumatic components.
• Made in Italy – Manufactured by GAV in Italy.
